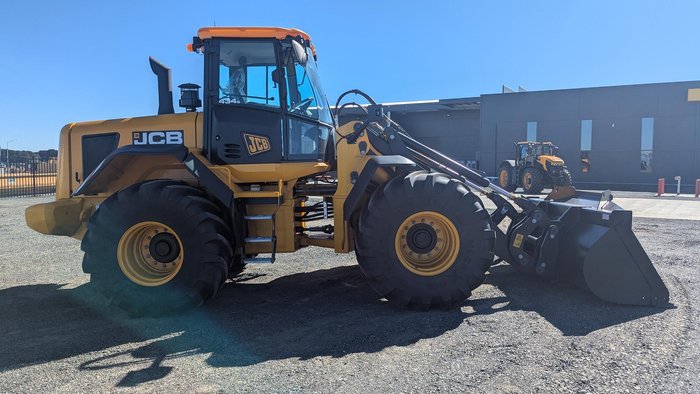

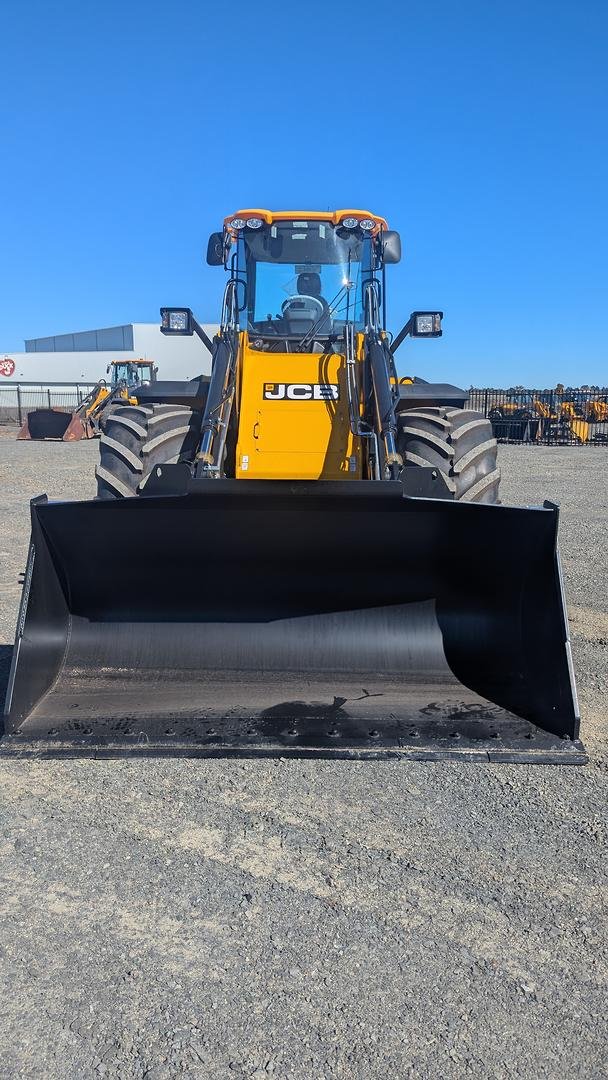

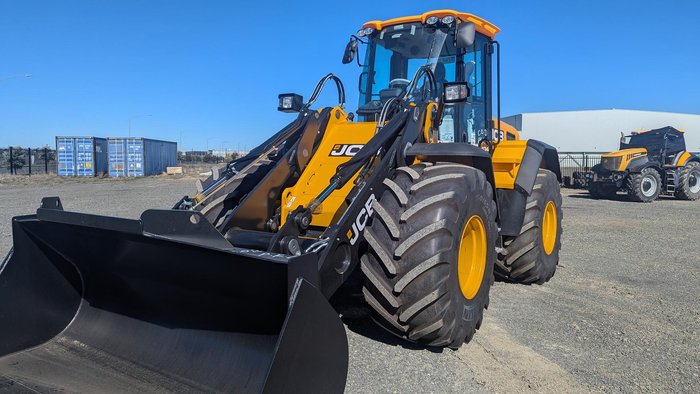

2025 JCB 434S

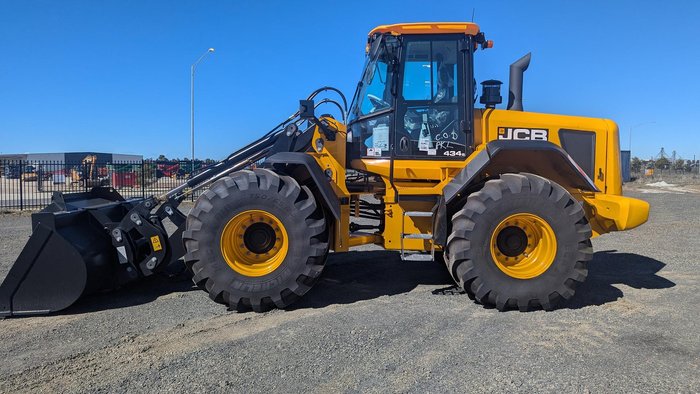

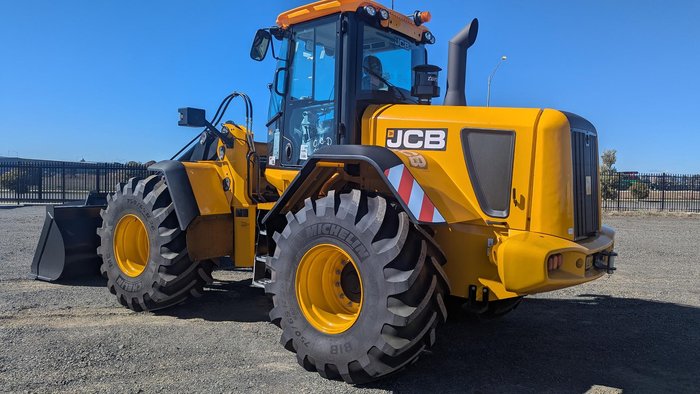

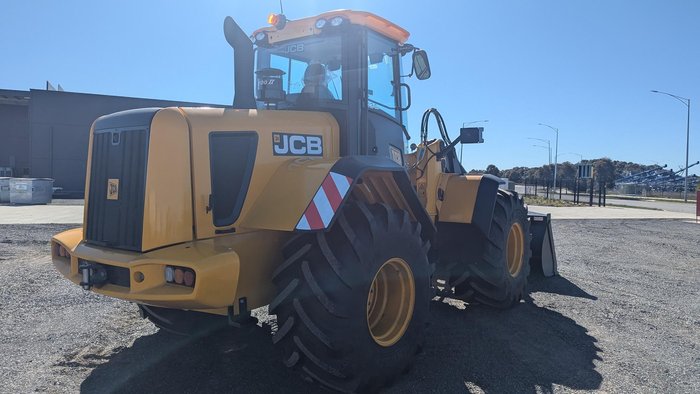

JCB 434S Wheel Loader. New Arrivals. Just Landed. $329,00 + GST.

Performance, power, and a comfortable cab. What more could you want from a machine? From effortlessly shovelling soil and muck to smoothly handling bales, pallets and materials, the JCB 434S Tool Carrier Wheel Loader simply makes life easy. Ultra-ef?cient, ultra-comfortable, and ultra-low maintenance, it’s a pleasure to work with, day in day out.
Engine
Cummins QSB 6.7 Litre, 164kW (220HP) @ 2,200rpm, Tier 3, turbocharged, 6-cylinder wastegated turbo-charged, liquid cooled, common rail injection diesel engine. Auto Reverse Fan. Fuel Tank Capacity – 230 Litres.

Driveline
ZF 6WG210 Transmission, Lock-Up Torque Convertor, Automatic – 6 Speed Powershift Transmission (6 Fwd./3 Rev) Max Speed 40kph - FWD, Manual Kick Down, Switchable Clutch Cut Off, ZF LSD Axles - Epicyclic Wheel Hub Reduction with Wheel Speed Braking, Fixed Front / Oscillating Rear Axle (21 degrees). Belly Guard Kit, Smooth Ride System (SRS), Michelin Megaxbib 750 x 65 R26 Ag Tyres.

Hydraulics

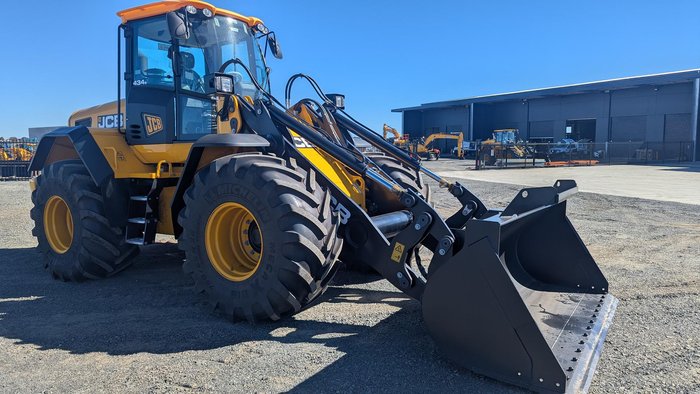

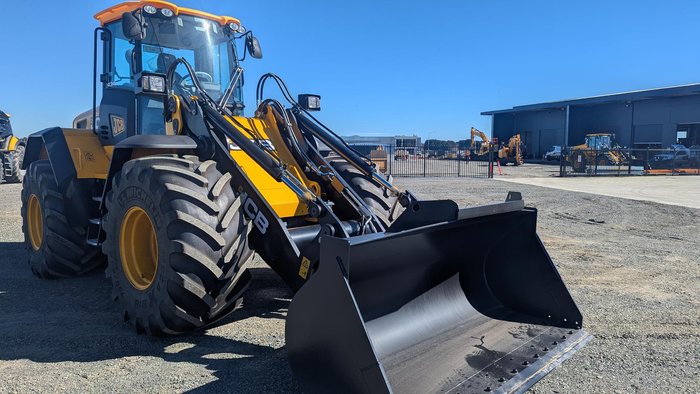

Twin Variable Displacement Piston Pump – Load Sensing (Pump 1 – 132L/Min. Pump 2 -132L/min) with Priority Steer, Emergency Steer Back Up, Electro Proportional 3rd Spool Auxiliary Circuit with Latching / Constant Flow, Float, Bucket Reset and Lift Arm Kick Out, Tool Carrier with Industrial Hydraulic Quick Hitch, 2.4m3 GP Bucket with Toeplate.

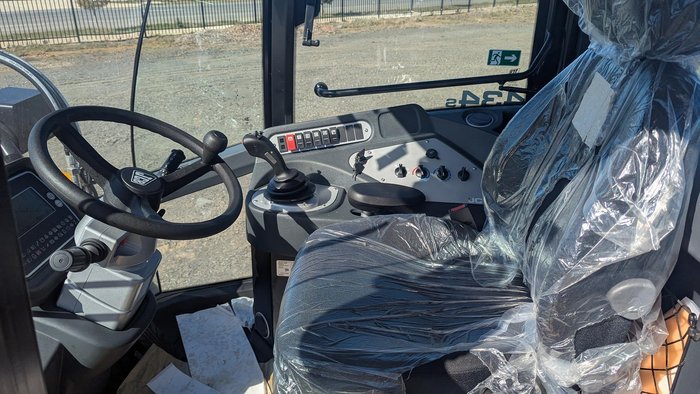

Operator Station
ROPS / FOPS Safety structure, Heater & Air-Conditioned Safety Structure, Sliding Glass, electronic monitoring panel and display (EMS) menus along with service and diagnostic screens, Integrated Rear View Camera and Reverse Alarm with Light, KAB Air Suspension Seat, Heated External Mirrors and Two Interior Mirrors, Operator Storage Facilities, Single Lever Servo Control with Integrated Transmission Disconnect, Front & Rear Roller Blind, Road Lighting Front & Rear, Work Lights
Front & Rear, Parking Lights, .

Dimensions
Operating Weight 13,120kg Transport Length 6,831mm
Transport Height 3,387mm Operating Width Over Tyres 2,740mm
Ground Clearance 494mm Articulation Angle 40 Degrees
Maximum Bucket Breakout 106kN Maximum Load Over Height 4,040mm Payload 3,104mm
Warranty
New Machine Warranty 12 Months/ 2000 Hours (whichever occurs ?rst)
